The BMW E46 is a popular model, admired for its performance and craftsmanship. However, like many vehicles, it can suffer from critical issues as it ages, one of the most severe being a blown head gasket. The head gasket in a BMW E46 is vital to the proper functioning of the engine, as it seals the combustion chamber, preventing oil and coolant from mixing. But when the BMW E46 blown head gasket symptoms begin to appear, you may be facing a costly repair if not addressed promptly.
What is a Head Gasket?
To understand the BMW E46 blown head gasket symptoms, it’s essential to first recognize the role of the head gasket. The head gasket is a seal located between the engine block and the cylinder head. It serves as a barrier, maintaining compression in the combustion chamber, while ensuring oil and coolant flow to their designated areas without mixing. If the head gasket fails, it can cause various issues that affect the overall health of your engine.
Key Functions of a Head Gasket:
-
Seals the combustion chamber, maintaining necessary pressure
-
Prevents oil and coolant from mixing, ensuring proper engine function
-
Maintains the temperature balance of the engine
-
Allows exhaust gases to pass through safely
When the head gasket blows, the entire engine is at risk of damage, and the BMW E46 blown head gasket symptoms will begin to manifest, signaling a need for immediate action.
Symptoms of a BMW E46 Blown Head Gasket
Identifying a BMW E46 blown head gasket early can save you from costly repairs. Here are the primary BMW E46 blown head gasket symptoms to watch for, which indicate that the gasket may have failed or is in the process of failing.
1. Overheating Engine
Engine overheating is one of the most common BMW E46 blown head gasket symptoms. Overheating can occur when coolant leaks into the cylinders, or when the head gasket fails to prevent coolant from escaping into the engine block. As coolant is unable to circulate properly, the engine temperature increases, potentially leading to damage in the cylinder head or other components.
Why It Happens:
-
Coolant leaks into the engine, disrupting proper cooling
-
Blocked or damaged radiators causing overheating
-
The engine’s cooling system unable to function due to the head gasket failure
If your BMW E46 starts running hotter than usual, or the temperature gauge consistently climbs past normal levels, it could be one of the first signs of BMW E46 blown head gasket symptoms.
2. White Smoke From the Exhaust
White smoke is one of the most telling BMW E46 blown head gasket symptoms. If you notice thick white smoke coming from your exhaust pipe, it indicates that coolant has leaked into the engine’s cylinders. As coolant burns off during the combustion process, it turns into steam, which is expelled through the exhaust as white smoke.
Why It Happens:
-
Coolant leaks into the combustion chamber and burns off during combustion
If your BMW E46 is puffing out white smoke, it’s a clear indication that the head gasket may be blown, allowing coolant to enter the combustion chamber.
3. Oil Contamination (Milky or Sludgy Oil)
Another significant BMW E46 blown head gasket symptom is the contamination of the engine oil. If coolant mixes with the engine oil, it can form a thick, milky substance, visible when you check the oil dipstick or underneath the oil filler cap. This not only impairs the oil’s ability to lubricate but can also lead to further internal engine damage.
Why It Happens:
-
Coolant leaks into the engine oil due to the blown gasket
Finding a milky or sludgy appearance in your oil is a warning sign that the BMW E46 blown head gasket symptoms are causing serious issues inside your engine.
4. Loss of Coolant Without Visible Leaks
If you notice your BMW E46 is losing coolant but you can’t find any visible leaks, it’s likely that the coolant is entering the engine through the blown head gasket. In this scenario, coolant is being consumed within the engine, either through burning in the combustion chamber or mixing with the oil, and not leaking externally.
Why It Happens:
-
Coolant leaks into the engine due to a gasket failure
-
Internal engine coolant consumption is difficult to spot externally
A drop in coolant levels without any apparent leaks is one of the more subtle BMW E46 blown head gasket symptoms that can signal a significant issue.
5. Poor Engine Performance or Misfires
If your BMW E46 is struggling to maintain power, misfiring, or hesitating during acceleration, these could be BMW E46 blown head gasket symptoms. A failed head gasket can cause poor compression, leading to inefficient combustion and misfires. When the gasket fails, coolant entering the cylinders can disrupt the proper air-fuel mixture, resulting in a decrease in engine performance.
Why It Happens:
-
Loss of compression due to gasket failure
-
Disrupted combustion process due to coolant entering the cylinders
If your BMW E46 is misfiring or showing signs of poor acceleration, it could be related to a blown head gasket, making it essential to address this problem immediately.
6. Bubbling in the Radiator or Coolant Reservoir
Bubbling in the radiator or coolant reservoir is another clear sign of a blown head gasket in your BMW E46. When exhaust gases escape into the coolant system, they cause pressure to build up, leading to bubbling. This can be a serious issue, as it can lead to overheating and more significant engine damage if not fixed.
Why It Happens:
-
Exhaust gases leaking into the coolant system through the gasket failure
-
Increased pressure from exhaust gases causes bubbling in the cooling system
https://www.bimmerforums.com/
How to Diagnose and Fix a BMW E46 Blown Head Gasket
Now that you’ve learned about the BMW E46 blown head gasket symptoms, the next step is understanding how to diagnose the issue accurately. While some symptoms are easy to spot, others may require professional equipment to confirm the diagnosis. Here’s a step-by-step guide to diagnosing and fixing a blown head gasket in your BMW E46.
Diagnosing a BMW E46 Blown Head Gasket
1. Perform a Compression Test
One of the most reliable ways to diagnose a blown head gasket is by performing a compression test. This test measures the pressure in each of the engine’s cylinders. A significant drop in compression in one or more cylinders could indicate a blown head gasket.
What You Need:
-
Compression tester kit
-
A helper to assist with the engine cranking
Steps:
-
Remove the spark plugs from each cylinder.
-
Connect the compression tester to the first cylinder.
-
Have your helper crank the engine while you monitor the gauge.
-
Compare the results to the manufacturer’s recommended compression values.
If you notice a significant difference in compression between cylinders or a low reading on one cylinder, it’s a strong sign of a BMW E46 blown head gasket.
2. Check the Coolant for Oil Contamination
Another diagnostic test involves checking for oil contamination in the coolant. If the coolant has a milky or frothy appearance, it’s an indication that oil and coolant have mixed, which is a clear sign of a blown head gasket.
What to Look For:
-
Milky or frothy substance in the coolant reservoir
-
Coolant that looks oily or greasy
This test is relatively easy to perform and can quickly confirm if a BMW E46 blown head gasket is the cause of the problem.
3. Examine the Exhaust for White Smoke
If you’ve already noticed white smoke coming from the exhaust, this is a direct sign of a blown head gasket. However, to confirm, you can observe the consistency and volume of the smoke. If the smoke persists even after the engine has warmed up, it is likely due to coolant entering the combustion chamber, which indicates a blown head gasket.
What to Watch For:
-
Thick white smoke that continues after the engine has reached normal operating temperature
-
A smell of coolant or antifreeze in the exhaust
If you see significant white smoke coming from the exhaust, this can be a critical BMW E46 blown head gasket symptom that should be addressed immediately.
4. Use a Block Test Kit
A block test kit is designed to detect exhaust gases in the coolant, which is a common sign of a blown head gasket. The kit uses a special liquid that changes color when it comes into contact with exhaust gases in the coolant.
What You Need:
-
Block test kit (available from most auto parts stores)
Steps:
-
Remove the radiator cap and attach the block test kit to the coolant system.
-
Run the engine for a few minutes, then observe the test kit.
-
If the liquid in the test kit changes color, it indicates the presence of exhaust gases, confirming a blown head gasket.
This test is highly effective for diagnosing BMW E46 blown head gasket symptoms and can be done relatively easily with the right tools.
5. Check for Engine Misfires or Rough Idling
If your BMW E46 is misfiring or running rough, it could be another sign of a blown head gasket. This can happen when coolant enters the cylinders, disrupting the combustion process. To diagnose this, simply listen for any rough idling or pay attention to any hesitation during acceleration.
What to Look For:
-
Rough engine idle that fluctuates
-
The engine feels sluggish or hesitates during acceleration
This symptom, combined with other BMW E46 blown head gasket symptoms, may help you confirm that a blown head gasket is the root cause.

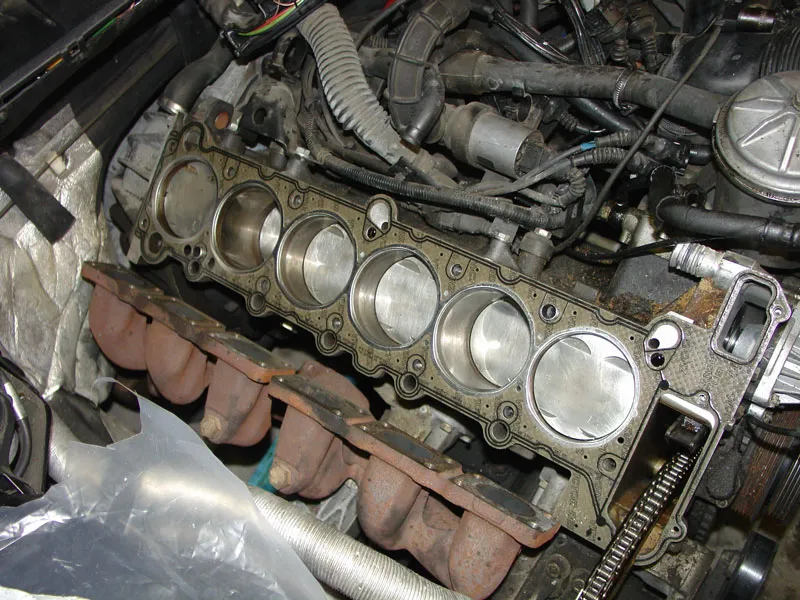

Fixing a BMW E46 Blown Head Gasket
Once you’ve confirmed that the head gasket is blown, the next step is deciding how to fix the issue. Fixing a blown head gasket in a BMW E46 is not a simple DIY task, and it’s recommended that you take your vehicle to a professional mechanic. However, if you’re an experienced DIYer and want to attempt the repair, here’s what the process typically involves:
1. Remove the Engine Components
To access the head gasket, you’ll need to remove several engine components, including the intake manifold, exhaust manifold, valve cover, and timing components. This requires significant disassembly, and each part must be carefully removed and labeled for reinstallation.
Important Considerations:
-
Disconnect the battery to prevent electrical issues.
-
Keep track of all nuts, bolts, and parts during disassembly.
2. Inspect the Cylinder Head for Damage
Once you’ve removed the necessary components, carefully inspect the cylinder head for cracks, warping, or other damage. A warped cylinder head may not seal properly with the new head gasket, in which case, the cylinder head will need to be machined or replaced.
What to Check For:
-
Cracks along the cylinder head
-
Warping, which can be checked using a straightedge
3. Clean the Surfaces
After removing the old gasket, thoroughly clean both the cylinder head and engine block surfaces. Ensure there is no residue or debris, as any contamination can prevent the new gasket from sealing properly. Use a gasket scraper and solvent to clean both surfaces.
4. Install the New Head Gasket
Once the surfaces are clean, install the new head gasket. Be sure to follow the manufacturer’s specifications for the proper torque sequence when installing the cylinder head bolts. This ensures that the gasket seals correctly and that the cylinder head is properly secured.
5. Reassemble the Engine
After the new head gasket is in place, reassemble the engine by reversing the disassembly steps. Carefully reinstall all parts and check for proper fitment. Pay special attention to torque specifications for all bolts to ensure the engine is reassembled correctly.
Conclusion:
In conclusion, dealing with BMW E46 blown head gasket symptoms is not something you should take lightly. This issue can lead to severe engine damage if not addressed promptly. Symptoms like engine overheating, white smoke from the exhaust, oil contamination, and poor engine performance are clear signs that something is wrong with your head gasket. Early diagnosis through tests like a compression test, coolant inspection, and block test kit can save you from costly repairs and engine failure down the road.
If you experience any of the BMW E46 blown head gasket symptoms, it’s essential to take action quickly. While the repair is complex and often requires professional expertise, understanding the symptoms and diagnostic steps gives you a head start in addressing the issue. Whether you choose to attempt a DIY fix or take your vehicle to a professional, acting promptly is key to preserving the health and performance of your BMW E46.
